M2 — Maintenance Management System

M2 is a Computerised Maintenance Management System (CMMS) built for the Inspiring Living Solutions (ILS) property management platform. It handles work orders, asset tracking, preventive maintenance scheduling, vendor management, inventory, purchase orders, and emergency response for villa properties.

Production URL: https://m2.inspiringlivingsolutions.com
Company: Inspiring Living Solutions / Inspiring Group (UAE)
Codebase: Next.js full-stack monolith (API + frontend in one app)

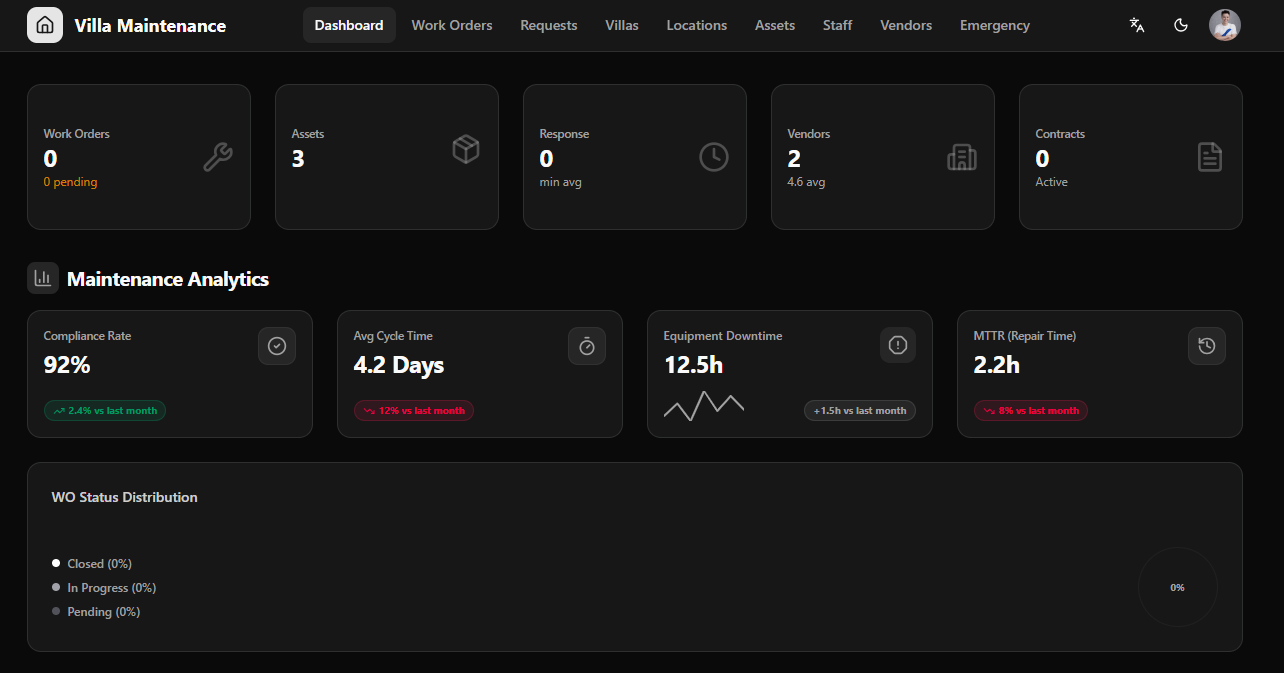

M2 Dashboard overview - Part 1

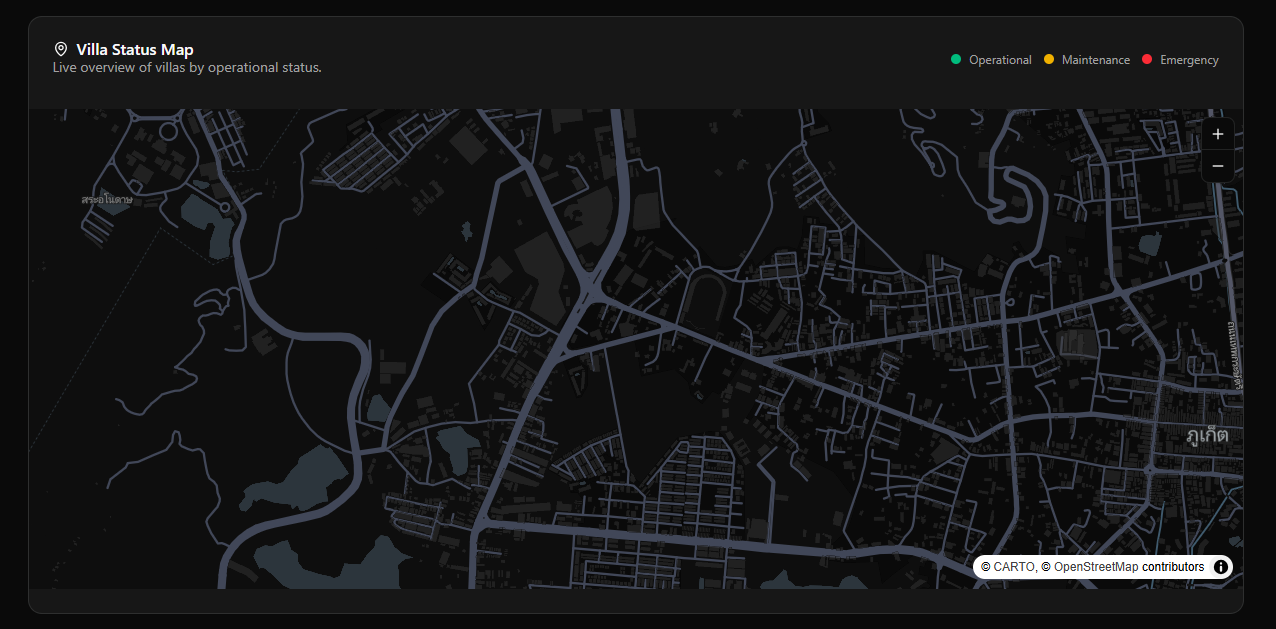

M2 Dashboard overview - Part 2

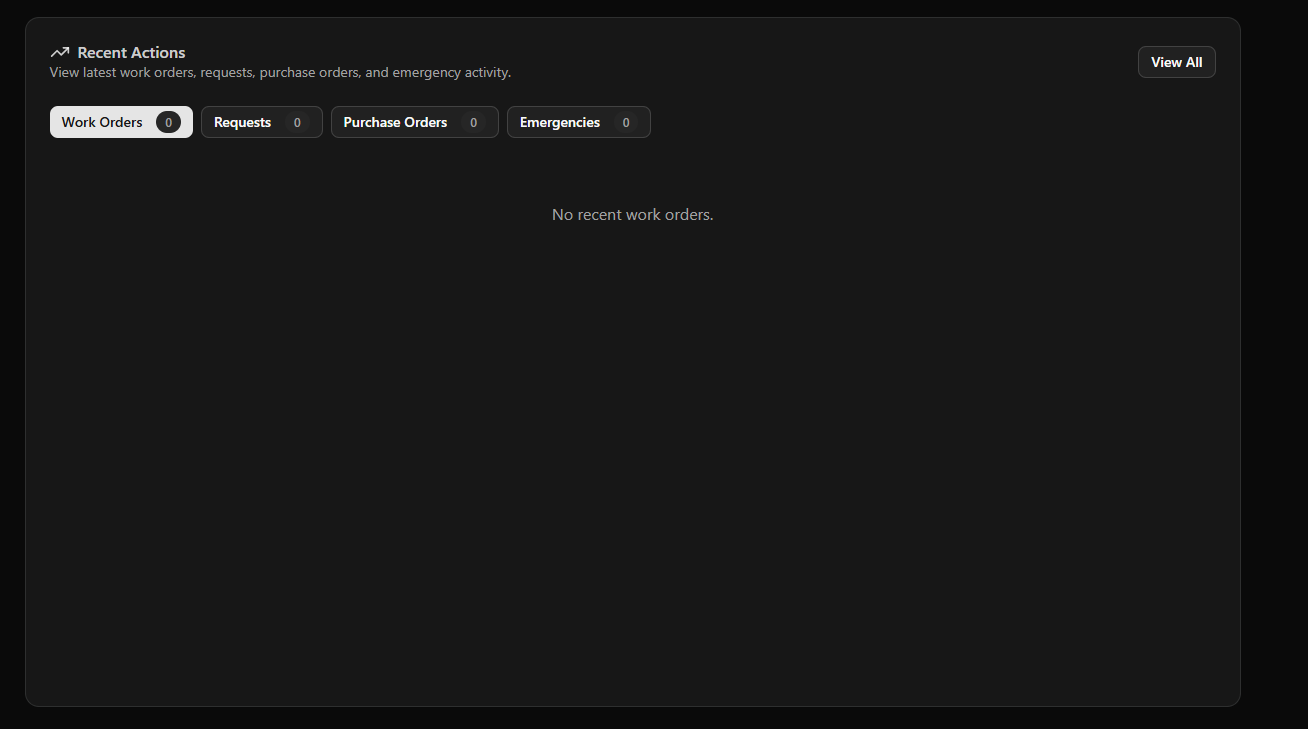

M2 Dashboard overview - Part 3

System Architecture

graph TD
    Browser["Browser / PWA"]
    NextApp["M2 Next.js App\nm2.inspiringlivingsolutions.com"]
    AuthJS["NextAuth v5\nJWT Session"]
    Authentik["Authentik SSO\nsso.inspiringroup.com"]
    AzureAD["Microsoft Azure AD\nIdentity Provider"]
    Bitrix["Bitrix24\nAlternate Auth"]
    Postgres["PostgreSQL\nPrisma ORM"]
    GMaps["Google Maps API\nGeocoding / Places"]
    Sentry["Sentry\nsentry.dabz.me\nError Monitoring"]

    Browser -->|HTTPS| NextApp
    NextApp -->|JWT verify| AuthJS
    AuthJS -->|OIDC| Authentik
    Authentik -->|OAuth| AzureAD
    AuthJS -->|OAuth| Bitrix
    NextApp -->|Prisma| Postgres
    NextApp -->|JS API Loader| GMaps
    NextApp -->|SDK| Sentry

How M2 Fits the ILS Ecosystem

graph LR
    OBV["OBV (M1)\nOnboarding Wizard\nobv.inspiringlivingsolutions.com"]
    M2["M2\nMaintenance CMMS\nm2.inspiringlivingsolutions.com"]
    M3["M3\nInventory\nm3.inspiringlivingsolutions.com"]
    M4["M4\nReporting"]
    M7["M7\nHardware Assets\nm7.inspiringlivingsolutions.com"]
    SSO["Authentik SSO\nShared Identity Provider"]
    AzureAD["Microsoft Azure AD"]

    SSO -->|OIDC| OBV
    SSO -->|OIDC| M2
    SSO -->|OIDC| M3
    SSO -->|OIDC| M4
    SSO -->|OIDC| M7
    AzureAD -->|IdP| SSO

All ILS microservices share the same Authentik SSO instance. M2 does not share its database with any other service — each module maintains its own PostgreSQL instance.

Tech Stack

Runtime & Language

Technology	Version	Purpose
Node.js	22+	Runtime
TypeScript	5.9.3	Language
Next.js	16.1.6	Full-stack framework (App Router)
React	19	UI library

Package Management & Build

Tool	Version	Purpose
Yarn	1.22.22	Package manager
Vite	7.3.0	Build tooling / Vitest runner
PostCSS	8.5.6	CSS transformation

Database & ORM

Technology	Version	Purpose
PostgreSQL	16	Primary database
Prisma	7.3.0	ORM + migrations
pg	8.16.3	PostgreSQL client adapter

Frontend Libraries

Library	Version	Purpose
Tailwind CSS	4	Utility-first styling
shadcn/ui	Latest	Component library (Sky/Zinc theme)
Radix UI	Various	Headless UI primitives
React Hook Form	7.69.0	Form state management
Zod	4.3.4	Schema validation
Zustand	5.0.9	Global state management
TanStack React Table	8.21.3	Data tables
React Big Calendar	1.19.4	PMP schedule calendar
Sonner	2.0.7	Toast notifications
next-intl	4.6.1	i18n (English + Thai)
next-themes	0.4.6	Dark/light mode
Lucide React	0.562.0	Icons

Authentication

Library	Version	Purpose
NextAuth	v5 beta 30	Auth framework
Authentik (OIDC)	—	Primary SSO provider
Bitrix24 (OAuth)	—	Secondary login provider

Observability & Testing

Tool	Version	Purpose
Sentry (`@sentry/nextjs`)	10.32.1	Error monitoring
Vitest	4.0.16	Unit + integration tests
`@testing-library/react`	16.3.1	Component tests
`@vitest/coverage-v8`	4.0.18	Test coverage

Folder Structure

m2-main/
├── src/
│   ├── app/                        # Next.js App Router
│   │   ├── api/                    # All REST API route handlers
│   │   │   ├── assets/
│   │   │   ├── auth/               # NextAuth + Bitrix OAuth routes
│   │   │   ├── emergency-contacts/
│   │   │   ├── incidents/
│   │   │   ├── inventory/
│   │   │   ├── parts/
│   │   │   ├── pmp-schedules/
│   │   │   ├── pmp-templates/
│   │   │   ├── purchase-orders/
│   │   │   ├── requests/
│   │   │   ├── response-teams/
│   │   │   ├── staff/
│   │   │   ├── teams/
│   │   │   ├── vendors/
│   │   │   ├── villa-locations/
│   │   │   ├── villas/
│   │   │   ├── work-orders/
│   │   │   └── zones/
│   │   ├── assets/                 # Asset management pages
│   │   ├── emergency/              # Emergency management pages
│   │   ├── inventory/              # Inventory pages
│   │   ├── locations/              # Villa location pages
│   │   ├── login/                  # Login page
│   │   ├── parts/                  # Parts management pages
│   │   ├── pmp/                    # PMP calendar + templates
│   │   ├── purchase-orders/        # Purchase order pages
│   │   ├── reports/                # Analytics & reporting
│   │   ├── requests/               # Maintenance request pages
│   │   ├── settings/               # Settings page
│   │   ├── staff/                  # Staff & team management
│   │   ├── vendors/                # Vendor management
│   │   ├── villas/                 # Villa management + map view
│   │   ├── work-orders/            # Work order pages
│   │   ├── layout.tsx              # Root layout (Sentry, theme, i18n)
│   │   └── page.tsx                # Dashboard
│   ├── components/
│   │   ├── ui/                     # shadcn/ui primitives
│   │   ├── analytics/              # Dashboard charts
│   │   ├── assets/                 # Asset form, list, detail components
│   │   ├── emergency/              # Incident form, map, contacts
│   │   ├── locations/              # Location management
│   │   ├── maps/                   # Google Maps wrappers
│   │   ├── parts/                  # Parts & inventory components
│   │   ├── pmp/                    # PMP calendar, templates
│   │   ├── purchase-orders/        # PO form, detail components
│   │   ├── requests/               # Request form, detail
│   │   ├── staff/                  # Staff list, profile, team
│   │   ├── vendors/                # Vendor list, contracts, pricing
│   │   ├── villas/                 # Villa form, map, detail
│   │   ├── work-orders/            # WO form, detail, tasks, checklist
│   │   ├── app-header.tsx          # Top navigation bar
│   │   ├── app-sidebar.tsx         # Side navigation
│   │   ├── cmms-dashboard.tsx      # Main dashboard component
│   │   ├── data-table.tsx          # Generic reusable table (TanStack)
│   │   ├── sidebar-layout.tsx      # Page layout wrapper
│   │   └── status-badge.tsx        # Status/priority badge
│   ├── stores/                     # Zustand state stores
│   │   ├── work-order-store.ts
│   │   ├── asset-store.ts
│   │   ├── emergency-store.ts
│   │   ├── inventory-store.ts
│   │   ├── parts-store.ts
│   │   ├── purchase-orders-store.ts
│   │   ├── requests-store.ts
│   │   ├── vendor-store.ts
│   │   └── ui-store.ts
│   ├── lib/
│   │   ├── validations/            # Zod schemas per module
│   │   ├── api/                    # Client-side API fetch helpers
│   │   ├── utils/                  # Shared utilities (dates, labels)
│   │   ├── pmp/                    # PMP recurrence helpers
│   │   ├── db.ts                   # Prisma client singleton
│   │   ├── auth-server.ts          # Server-side auth helpers
│   │   ├── auth-client.ts          # Client-side auth helpers
│   │   ├── bitrix-user.ts          # Bitrix24 user sync
│   │   ├── password.ts             # bcrypt helpers
│   │   ├── mock-data.ts            # Development/seed data (71 KB)
│   │   └── maintenance-alert.ts    # Alert dispatch logic
│   ├── contexts/
│   │   └── auth-context.tsx        # React auth context
│   ├── types/
│   │   ├── villa.ts
│   │   └── zone.ts
│   ├── i18n/
│   │   ├── config.ts               # Supported locales: en, th
│   │   └── request.ts
│   ├── test/
│   │   ├── setup.ts                # Vitest global setup
│   │   └── integration/            # Integration test helpers
│   └── auth.ts                     # NextAuth config (providers, callbacks)
├── prisma/
│   └── schema.prisma               # Full database schema (1327 lines)
├── scripts/                        # E2E API test scripts
├── messages/                       # i18n translation files (en, th)
├── nginx/                          # Nginx reverse proxy config
├── Dockerfile                      # Production multi-stage build
├── Dockerfile.migrate              # Migration-only container
├── docker-compose.yml              # Local development
├── docker-compose.prod.yml         # Production deployment
├── .env.example                    # Development env template
├── .env.production.example         # Production env template
├── DEPLOYMENT.md                   # Deployment runbook
└── README.md                       # Authentik SSO setup guide

Environment Variables

Development (`.env.example`)

Variable	Example	Description
`HOSTNAME`	`0.0.0.0`	Bind address
`PORT`	`3000`	HTTP port
`LOG_LEVEL`	`info`	Log verbosity (`debug`, `info`, `warn`, `error`)
`NEXT_PUBLIC_SENTRY_DSN`	(empty)	Sentry DSN for client-side error reporting
`SENTRY_AUTH_TOKEN`	(empty)	Sentry token for source map upload
`AUTH_URL`	`http://localhost:3000`	Full app URL (used by NextAuth)
`AUTH_SECRET`	(generated)	NextAuth secret — run `openssl rand -base64 32`
`AUTH_TRUST_HOST`	`true`	Trust `X-Forwarded-Host` header
`AUTH_AUTHENTIK_ID`	(empty)	Authentik OAuth client ID
`AUTH_AUTHENTIK_SECRET`	(empty)	Authentik OAuth client secret
`AUTH_AUTHENTIK_ISSUER`	`https://sso.inspiringroup.com/application/o/m2/`	Authentik OIDC issuer URL
`NEXT_PUBLIC_AUTH_AUTHENTIK_ISSUER`	(same)	Issuer URL exposed to client
`DATABASE_URL`	`prisma+postgres://localhost:51213/?api_key=...`	Prisma Data Proxy URL for local dev

Production (`.env.production.example`)

Variable	Example	Description
`NODE_ENV`	`production`	Node environment
`POSTGRES_PASSWORD`	`change_me_strong_password`	PostgreSQL root password
`DATABASE_URL`	`postgresql://postgres:PASSWORD@postgres:5432/m2_cmms`	Direct PostgreSQL connection string
`AUTH_URL`	`https://your-domain.com`	Public-facing app URL
`AUTH_SECRET`	(generate)	NextAuth secret — never share
`NEXT_PUBLIC_GOOGLE_MAPS_API_KEY`	(optional)	Google Maps JS API key

Authentication Flow

sequenceDiagram
    participant User
    participant M2 as M2 App
    participant NextAuth
    participant Authentik
    participant AzureAD
    participant DB as PostgreSQL

    User->>M2: GET /login
    M2->>NextAuth: Initiate sign-in
    NextAuth->>Authentik: OIDC Authorization Request
    Authentik->>AzureAD: Federated login
    AzureAD-->>Authentik: Identity token
    Authentik-->>NextAuth: ID token + user info
    NextAuth->>DB: Upsert user record
    NextAuth-->>M2: JWT session cookie
    M2-->>User: Redirect to dashboard

    Note over M2,DB: Bitrix24 fallback: if no session,<br/>check cookie for Bitrix OAuth token

Auth Helpers

Function	File	Purpose
`getAuthenticatedUser()`	`lib/auth-server.ts`	Primary entry — checks session then Bitrix token
`getCurrentUserServer()`	`lib/auth-server.ts`	Reads JWT from cookie
`verifyPassword()`	`lib/password.ts`	bcrypt comparison for credential provider

Note: Demo bypass credentials ([email protected]:123, [email protected]:123) auto-create accounts in the database. Remove these for production.

Design Patterns

API Route Pattern

Every API route follows this structure:

export async function GET(request: NextRequest) {
  const user = await getAuthenticatedUser();
  if (!user) return NextResponse.json({ error: "Unauthorized" }, { status: 401 });

  // Parse query params → build Prisma where clause → paginate
  const data = await prisma.resource.findMany({ where, skip, take });
  return NextResponse.json(data);
}

export async function POST(request: NextRequest) {
  const user = await getAuthenticatedUser();
  if (!user) return NextResponse.json({ error: "Unauthorized" }, { status: 401 });

  const body = await request.json();
  const parsed = resourceSchema.safeParse(body);
  if (!parsed.success) return NextResponse.json({ error: parsed.error.issues }, { status: 400 });

  const record = await prisma.resource.create({ data: parsed.data });
  return NextResponse.json(record, { status: 201 });
}

Standard API Response Codes

Code	Meaning
`200`	Success (GET, PUT, PATCH)
`201`	Created (POST)
`400`	Validation error — body contains Zod issue array
`401`	Unauthenticated — no valid session
`404`	Resource not found
`500`	Internal server error

State Management (Zustand)

One store per major domain. Each store holds:

Entity list + filter state
Selected item
Loading / error flags
CRUD action methods

Stores use persist middleware to cache filters to localStorage and devtools for debug inspection.

Form Validation (Zod + React Hook Form)

Zod schemas live in src/lib/validations/[module].ts
Types are derived with z.infer<typeof schema>
The same schema is used for server-side validation in API routes and client-side validation in forms

Database Transactions

Complex multi-step writes use prisma.$transaction([...]) to ensure atomicity (e.g., creating a work order and its initial activity log entry together).

API Request Flow

sequenceDiagram
    participant Client
    participant Route as Next.js API Route
    participant Auth as getAuthenticatedUser()
    participant Zod as Zod Schema
    participant Prisma
    participant DB as PostgreSQL

    Client->>Route: HTTP Request
    Route->>Auth: Validate session
    Auth-->>Route: User | null
    alt Unauthenticated
        Route-->>Client: 401 Unauthorized
    end
    Route->>Zod: Parse request body
    alt Invalid body
        Route-->>Client: 400 { error: issues[] }
    end
    Route->>Prisma: Query / Mutation
    Prisma->>DB: SQL
    DB-->>Prisma: Result
    Prisma-->>Route: Typed result
    Route-->>Client: 200/201 JSON

Third-Party Integrations

graph TD
    M2["M2 App"]
    Authentik["Authentik OIDC\nsso.inspiringroup.com"]
    AzureAD["Microsoft Azure AD"]
    Bitrix24["Bitrix24 OAuth"]
    GMaps["Google Maps API\nPlaces + Geocoding"]
    Sentry["Sentry (self-hosted)\nsentry.dabz.me"]

    M2 -->|OIDC auth flow| Authentik
    Authentik -->|identity federation| AzureAD
    M2 -->|fallback login| Bitrix24
    M2 -->|villa map + place search| GMaps
    M2 -->|errors + source maps| Sentry

Integration	Package	Usage
Authentik	`next-auth/providers`	Primary SSO — all users login via Authentik
Microsoft Azure AD	(via Authentik)	Identity source
Bitrix24	`lib/bitrix-user.ts`	Alternative OAuth login, user profile sync
Google Maps	`@googlemaps/js-api-loader`, `@react-google-maps/api`	Villa map view, address autocomplete, geocoding
Sentry	`@sentry/nextjs`	Client + server error capture, source map upload

Note: No email delivery service (SendGrid, SES, etc.) is currently wired up. Alert notifications use in-app toasts only. Email integration requires manual implementation.

Note: File/image uploads accept URL strings in the schema. No S3/CDN/blob storage is currently integrated — the upload endpoints are placeholders.

Key Workflows

Work Order Lifecycle

sequenceDiagram
    participant Reporter
    participant Manager
    participant Technician
    participant M2 as M2 API
    participant DB

    Reporter->>M2: POST /api/work-orders
    M2->>DB: Create WorkOrder (status: PENDING)
    M2->>DB: Log WorkOrderActivity (created)
    Manager->>M2: PATCH /work-orders/:id/status (ASSIGNED)
    M2->>DB: Update assignedToId, status
    Technician->>M2: PATCH /work-orders/:id/status (IN_PROGRESS)
    Technician->>M2: POST /work-orders/:id/comments
    Technician->>M2: PATCH /work-orders/:id/tasks/:taskId (COMPLETED)
    Technician->>M2: PATCH /work-orders/:id/status (COMPLETED)
    M2->>DB: Set completedAt, log activity
    Manager->>M2: Verify and close

Request → Work Order Conversion

sequenceDiagram
    participant User
    participant M2 as M2 API
    participant DB

    User->>M2: POST /api/requests (status: PENDING)
    DB-->>M2: Request created (REQ-XXXX)
    Manager->>M2: PATCH /api/requests/:id/convert
    M2->>DB: Create WorkOrder linked to requestId
    M2->>DB: Update Request status → IN_PROGRESS
    M2-->>Manager: { workOrderId, workOrderNumber }

Preventive Maintenance (PMP) Scheduling

sequenceDiagram
    participant Admin
    participant M2 as M2 API
    participant DB
    participant Scheduler

    Admin->>M2: POST /api/pmp-templates (checklist + frequency)
    Admin->>M2: POST /api/pmp-schedules (template + villa/asset)
    M2->>DB: Create PMPSchedule (nextDueDate calculated)
    Scheduler->>M2: POST /api/pmp-schedules/generate-recurrence
    M2->>DB: Insert future PMPSchedule instances
    M2-->>Technician: Schedules visible on PMP calendar

User Roles

Role	Access Level
`ADMIN`	Full access — configuration, user management, all modules
`MANAGER`	All properties, work order assignment, reporting
`TECHNICIAN`	Assigned work orders, field notes, timesheets
`VENDOR`	Assigned external work orders only

Local Development

Prerequisites

Node.js 22+
Yarn 1.22.x
Docker (for PostgreSQL)
Access to Authentik SSO credentials (or use demo bypass accounts)

Setup

# Install dependencies
yarn install

# Copy environment file and fill in values
cp .env.example .env

# Generate Prisma client
npx prisma generate

# Run database migrations
npx prisma migrate dev

# Seed with mock data (optional)
npx prisma db seed

# Start development server
yarn dev

Running Tests

yarn test              # Unit tests in watch mode
yarn test:run          # Unit tests once
yarn test:integration  # Integration tests
yarn test:coverage     # Coverage report

Docker (Full Stack)

docker-compose up -d   # Starts app + PostgreSQL

Deployment

M2 is deployed as a Docker container on Digital Ocean via Coolify.

graph LR
    GitLab["GitLab CI\n.gitlab-ci.yml"]
    Docker["Docker Build\nmulti-stage"]
    Coolify["Coolify\nDeploy Host"]
    App["M2 Container\nNode 22 Alpine"]
    PG["PostgreSQL\nContainer"]
    Nginx["Nginx\nReverse Proxy"]

    GitLab -->|build image| Docker
    Docker -->|push| Coolify
    Coolify -->|run| App
    App --- PG
    Nginx -->|proxy| App

Build: Multi-stage Dockerfile — deps → build (Prisma generate + next build) → runner (standalone output)
Migrations: Separate Dockerfile.migrate runs prisma migrate deploy before app start
Config: Secrets injected via Coolify environment variables
Output: next build with output: 'standalone' for minimal container size

See DEPLOYMENT.md in the repo root for the full deployment runbook.

Known Limitations & TODOs

Location	Issue
`api/purchase-orders/route.ts:54`	TODO: Get actual user ID from session — currently falls back to first user in DB
`components/vendors/new-contract-modal.tsx:51`	TODO: Wire to API once service contracts endpoint is ready
File uploads	`fileUrl` fields accept strings only — no storage backend (S3/CDN) integrated
Email notifications	No email service configured — alerts are in-app toasts only
Real-time updates	No WebSocket/SSE — polling only
QR code scanning	`qrCode` field exists on Asset model but no scanning UI
Bitrix24 sync	Only OAuth login implemented — work order sync not built
Mobile app	`FieldNote` and `Timesheet` models exist but no dedicated mobile UI

Multi-Language Support

M2 is internationalised using next-intl. Supported locales:

Code	Language
`en`	English (default)
`th`	Thai (ภาษาไทย)

Translation message files are in messages/. Switch locale via the user menu.
